Cummins INLINE 6 Data Link for diesel trucks

250.00€

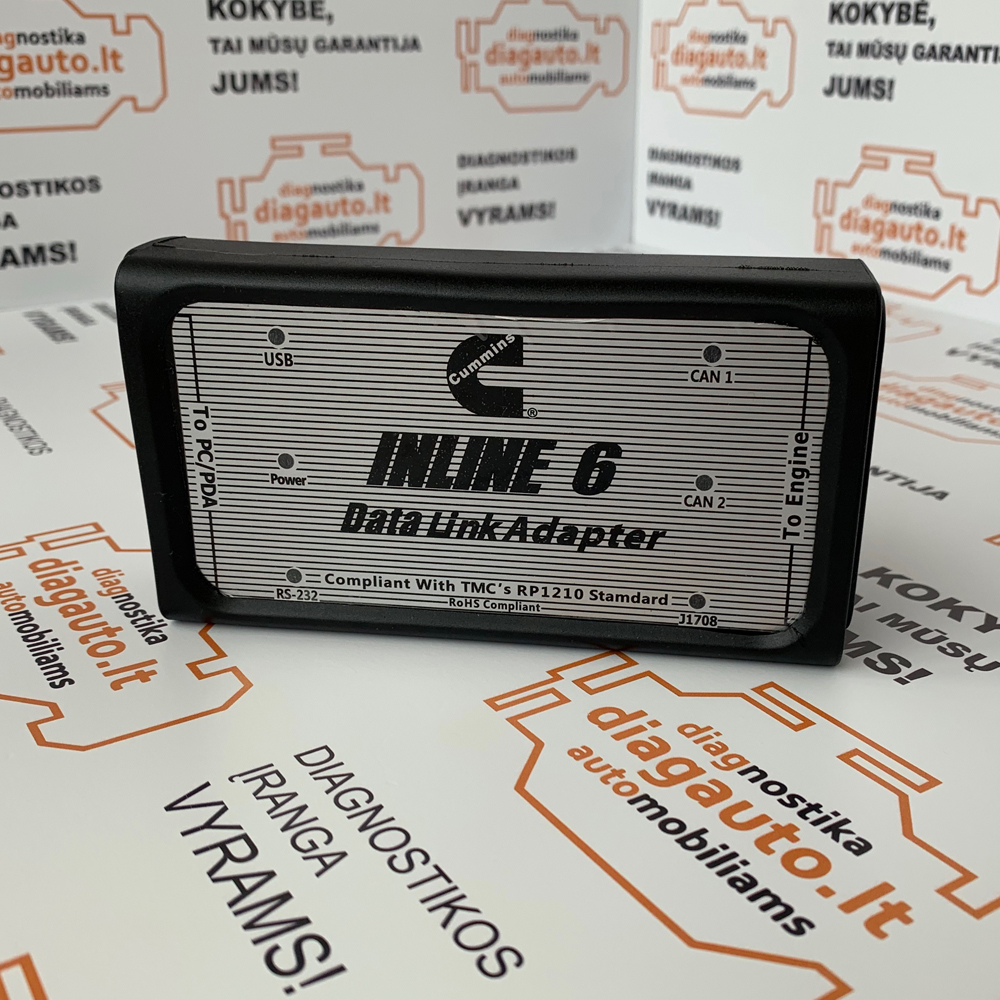

Cummins INLINE 6 Data Link for truck diagnostics is fully compliant with TMC’s RP1210 standard, and has been designed and environmentally tested to Cummins standards to be rugged and reliable.

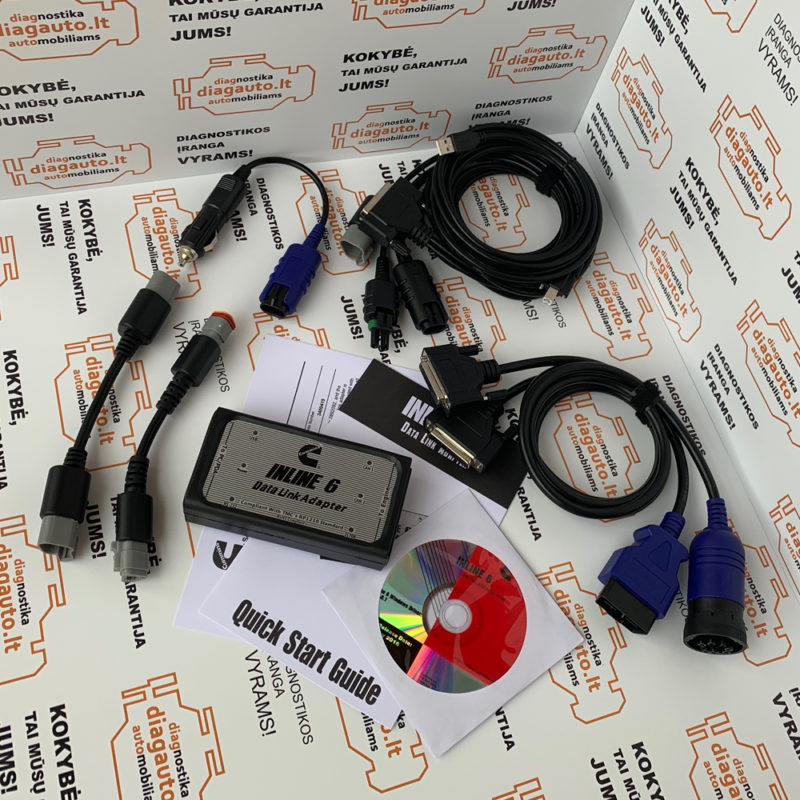

Package contains:

1 x INLINE 6 data link adapter (P/N 2892093)
1 x USB 14-foot cable (P/N 2892176)
1 x DB25F/9-pin data link cable (P/N 4919780)

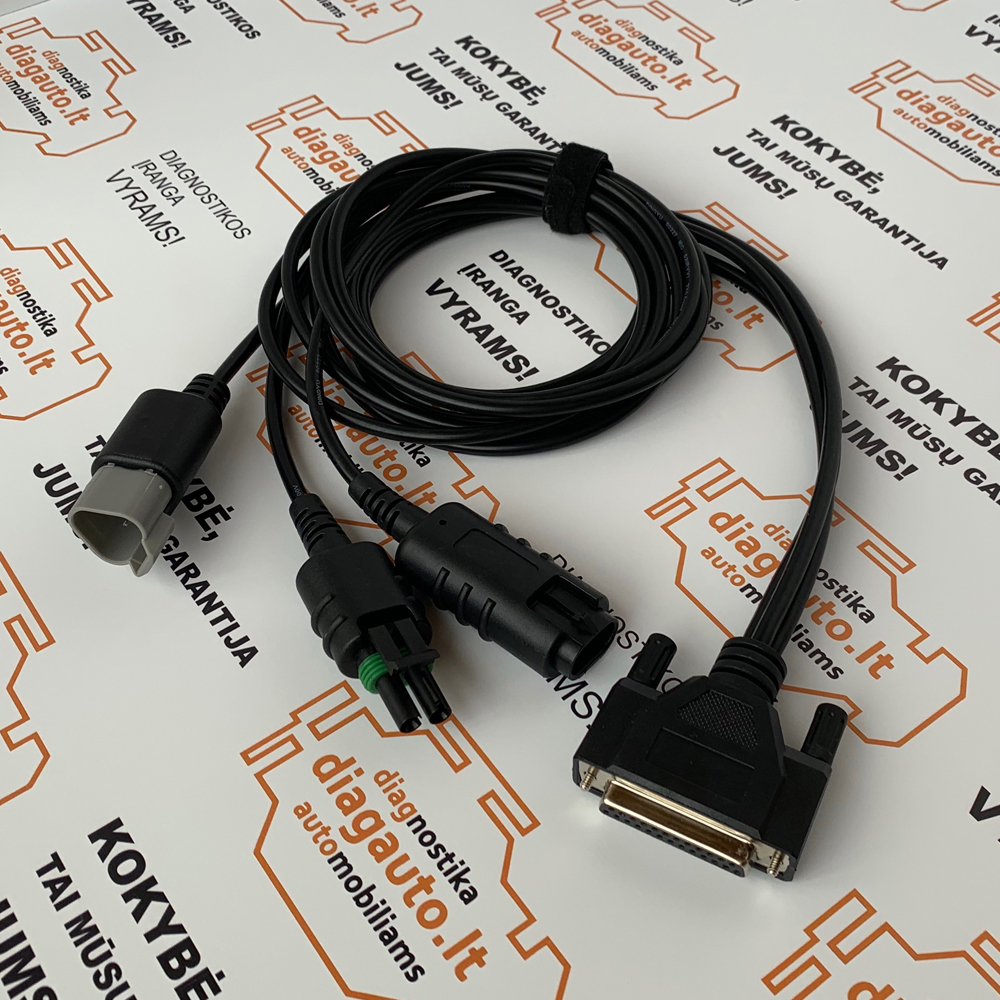

1 x DB25F/3-pin/3-pin/2-pin cable (P/N 4919797)
1 x Cummins Insite 7.62 software CD (P/N 2892095)
1 x J1939 Gender Changer adapter (P/N 3163597)
1 x J1939 Backbone adapter (P/N 3163096)
1 x Storage case (P/N 4918713)

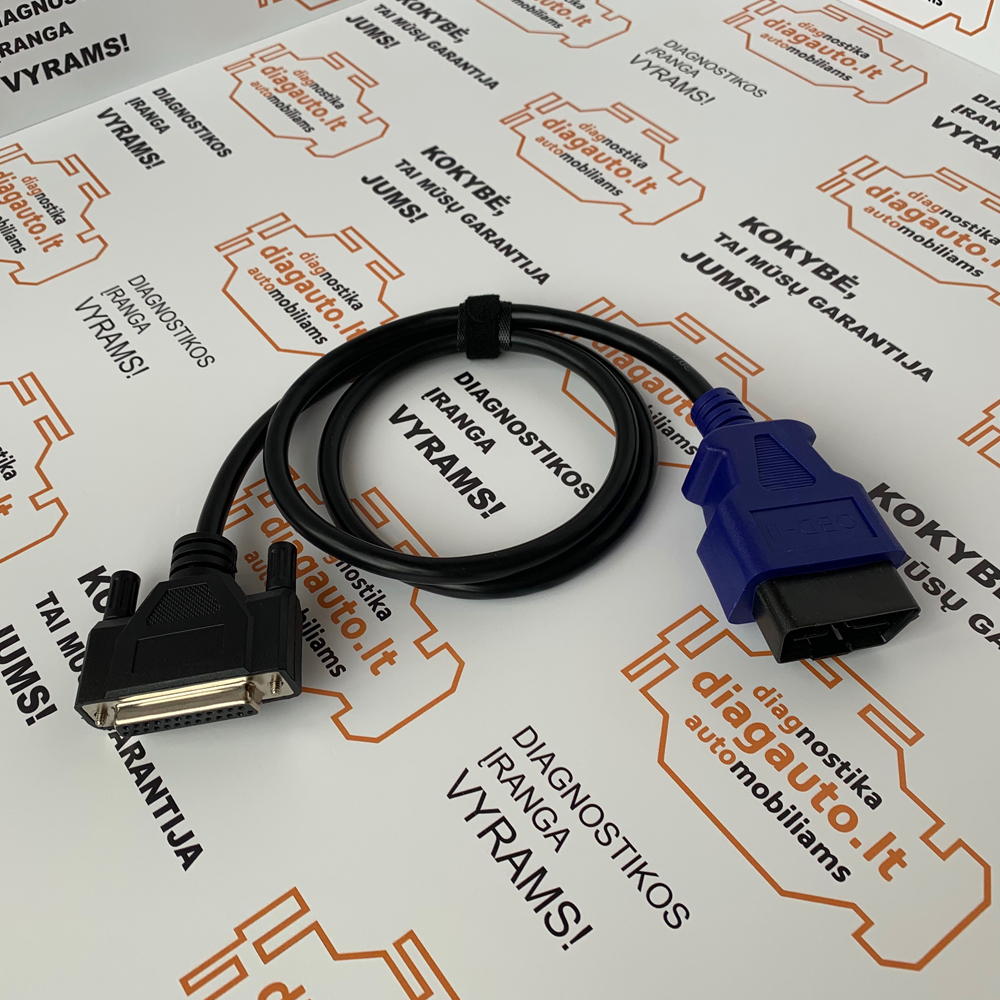

1 x OBD2 cable (P/N 4919781)

Warehouse: Preorder
LT/LV/EE Delivery time: 1-3 working days
Europe Delivery time: 4-7 working days
International Delivery time: 7-10 working days
Express Delivery time: 1-3 working days

SKU: SDI0000015 Categories: , Tags: , , , ,

Description

Multi-Language: English, Deutsch, Pyccкий, Dansk, Español, Norwegian, Finnish, French, Portuguese, Chinese, Turkish, Italiano, Estonian, Japan, Korean
Compatible Software: V8.2.0.184
Operating systems: Windows 7
System updates: Available (Contact us to check if there’s an available update)
Internet connections: Available
Warranty: 12 months

Features:

  • Supports SAE J1708/J1587 and J1939/CAN data links
  • Both CAN ports auto detect between 250 & 500 kbps
  • Supports USB full speed port at up to 2M baud rate
  • Custom USB cable includes thumbscrews for secure mounting to INLINE 6
  • Supports RS-232 PC serial port at up to 115.2k baud rate
  • Is fully compliant with TMC’s RP1210 standard
  • Small enough to fit in pocket
  • Attractive black powder coated aluminum housing provides ruggedness
  • Derives 8 V to 50 V DC power from vehicle
  • Controlled by advanced 140 MHz 32-bit Freescale processor for maximum speed and performance
  • Includes 6 LEDs to indicate status of power, USB, RS-232, J1708/J1587, and two CAN communication ports
  • Both CAN ports support SAE J1939, SAE J2534, and ISO 15765 protocols
  • INLINE 6 is certified to meet European CE requirements
  • Rated for -40° to +85° C operating temperature
  • INLINE6 meets rigorous Cummins in-cab environmental test requirements
