Description
Multi-Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
Connection: Directly, without dissemble ECU’s
Operating systems: Windows 7 Pro, Windows 10 Pro, Windows 11
System updates: Available
Internet connections: Available
Warranty: 12 months
Master: Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.
Supported ECU list – Click here
Supported TCU list – Click here
Function:
Covering a full range of German, ECU Programmer Japanese, American and Chinese models
EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, Hot start or Cold Start Vmax, and so on.
The list of vehicles is constantly updated, which keeps you at the forefront of the industry.
Support Volkswagen Audi clone (local operation without sending data to manufacturers)
ECU maintenance, Chip tuning, DTC code Removal, professional reading and writing equipment covering 99% of the models in the market.
KM200 Full Version Software includes 10 licenses:
Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gearbox
KT200 has 2 versions:
1. Car version (Auto version): Car OBD, Truck OBD, Full System, BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear
2.Full configuration version: Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD, Full System, BDM/JTAG , TOOL BOOT, Bench Mode, TCU Gear,
You can update Auto Version to be full version, provide S/N and order update service:
| Auto version | Full version | |
| Car OBD | √ | √ |
| Truck OBD | √ | √ |
| Tractor OBD | × | √ |
| Boat OBD | × | √ |
| Motorbike OBD | × | √ |
| Full System | √ | √ |
| BDM/JTAG | √ | √ |
| TOOL BOOT | √ | √ |
| Bench Mode | √ | √ |
| TCU Gear | √ | √ |
The following models can be read and programmed:
1.CAR
2.TRUCK MOTORBIKE
3.TRACTOR
4.BOAT
5.Additional TCU package available for Automatic Transmissions.
The cover-free method can read and write the following protocols through PIN OUT:
BOSCH EDC7
BOSCH EDC16
BOSCH ME9/MED9
BOSCH MD1
BOSCH MG1
-FREESCALESPC5777
-AURIXTC29x
-STSPC58
BOSCH EDC17
BOSCH MED17/ME17
SIEMEN SPCR2.1
(Unlocking also possible via pinout)
System-wide via PIN OUT (MICRO/FLASH+EEPROM) the following ECUs:
BOSCH
CONTINENTAL
DELCO
DENSO
MARELLI
SIEMENS
TEMIC
TEMIC
BDM EJTAGMODESFOR:
BDM MPC55x
BDM MPC56x
BDM MC32/ZC32
BDM HC12/S12x
JTAG NEXUS MPC/SPC56xx
JTAG NEXUS MPC55xx
JTAG RENESAS:
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
JTAG NEC76F00xx
76F0038AGD
76F0038GD
76F0039AGD
76F0039GD
76F0040GD
76F0070
76F0070
76F0085
BOOT MODES:
-BOOT MODEC16729Fxxx
-BOOT MODE ST K-LINE/RX-TX/CAN
ST10F168
ST10F269
ST10F273
ST10F275
ST10F276
ST10F276
ST10F280
ST10F296
-BOOT MODE Tricore for micro
TC1724
TC1728
TC1738
TC1738
TC1762
TC1766
TC1767
TC1782
TC1791
TC1792
TC1793
TC1793
TC1796
TC1797
-BOOT MODE Renesas
SH7052
SH7054
SH7055
SH7055
SH7058
SH7059
SH7251
SH72543
SH72544
-BOOT MODE Mitsubishi
MH7202
MH7203
MH8102F
MH8105F
MH8106F
MH8202
MH8206F
MH8301F
MH8301F
MH8304F
MH8405F
-BOOT BAM SYSTEM MOTOROLA
SPC5674
SPC5777
-BOOT MODE Fujitsu
-BOOT MODE Hitachi
ADDITIONAL PACKAGE FOR AUTOMATIC TRANSMISSION
FULL READ AND WRITE TCU(MICRO+EEPROM)
TCU CLONING
TCU CODING FUNCTIONS

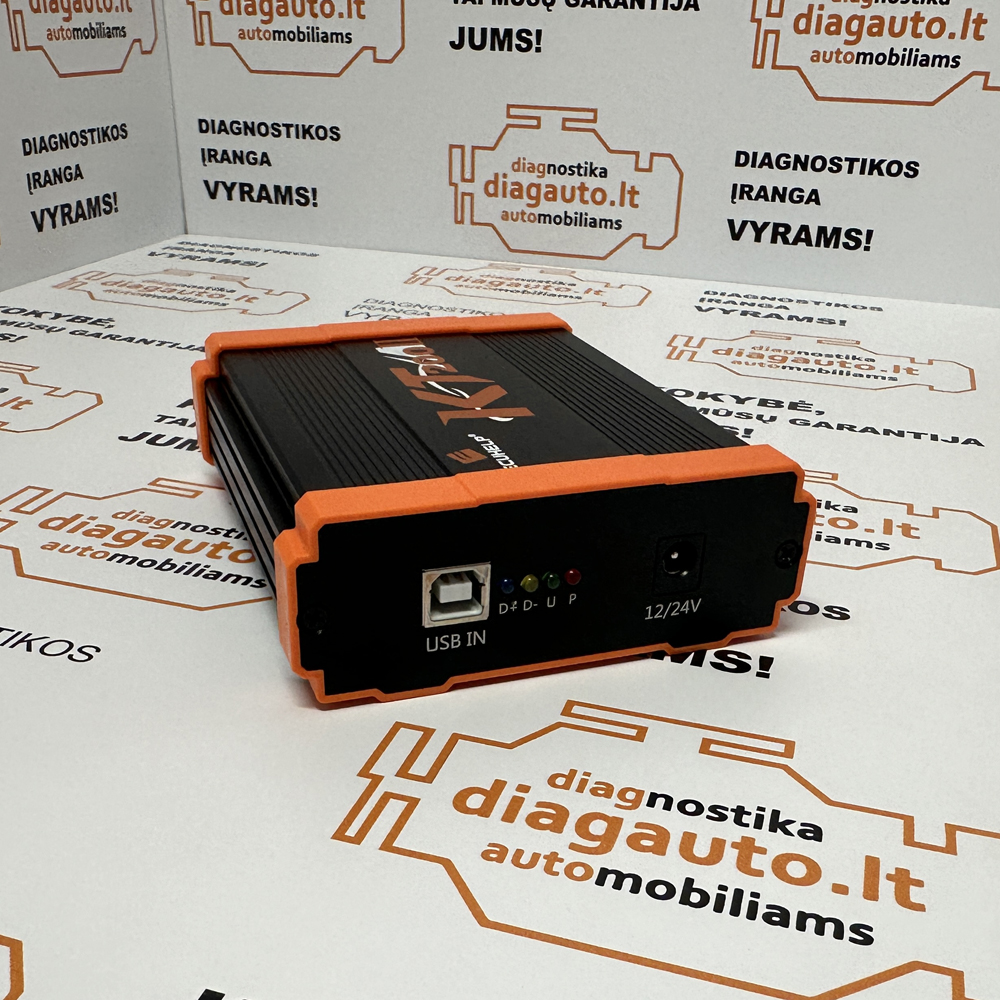

KT200 details:
