Description

Multi-Language: English
Software: V5.0.5 (Always latest software version!)
System updates: Available
Internet connections: Available
Warranty: 12 months
Manufacturer: Xhorse

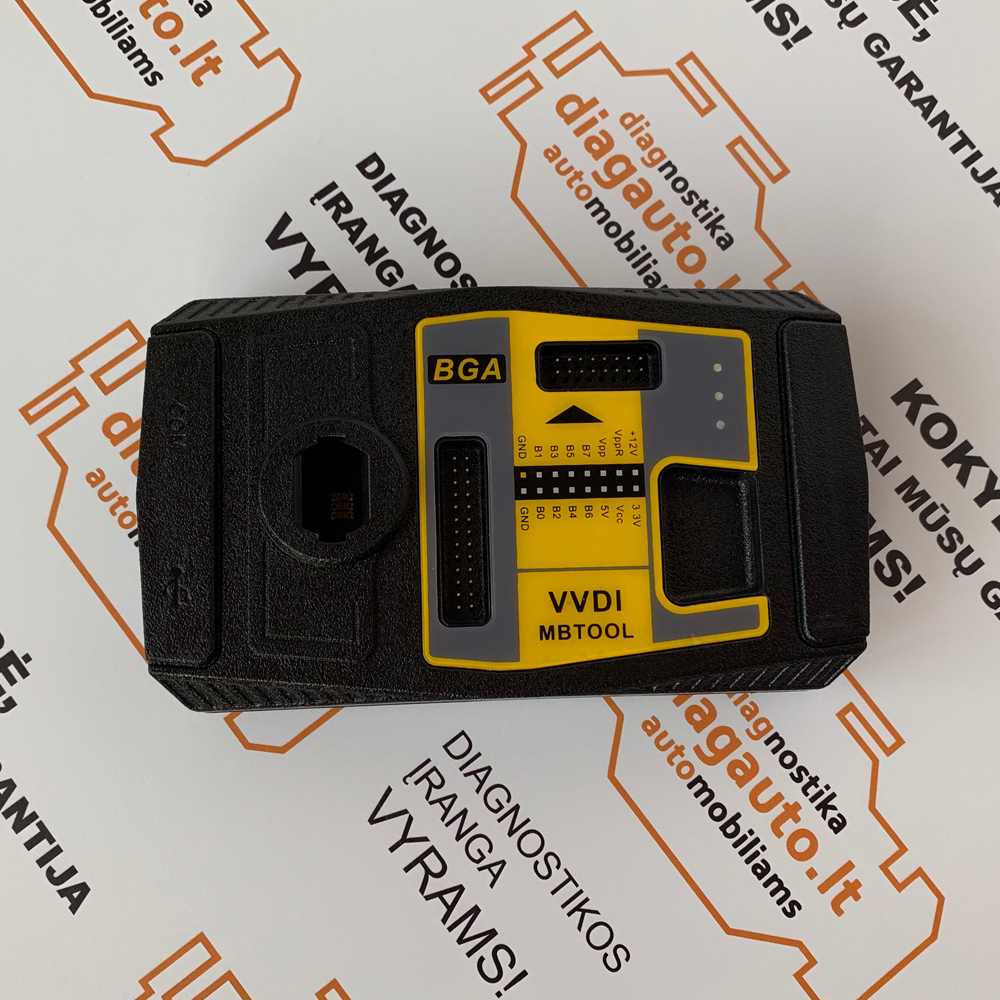

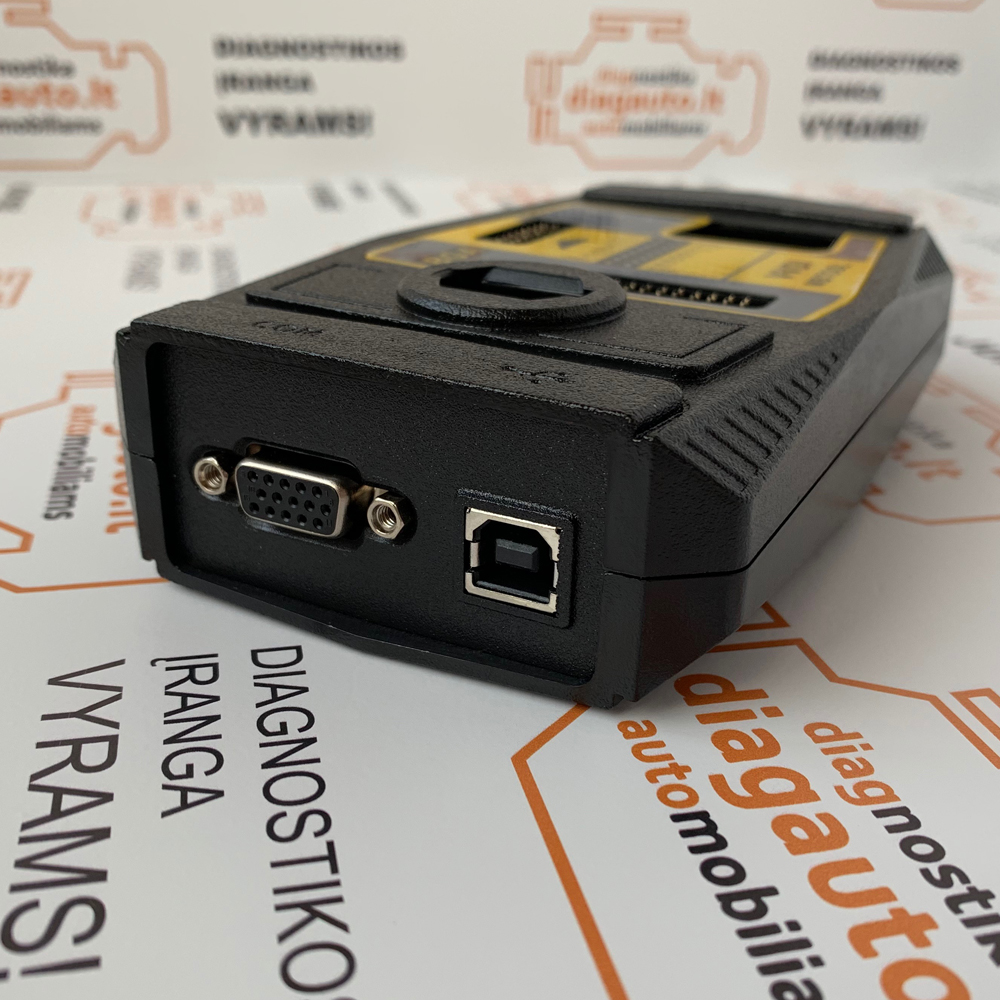

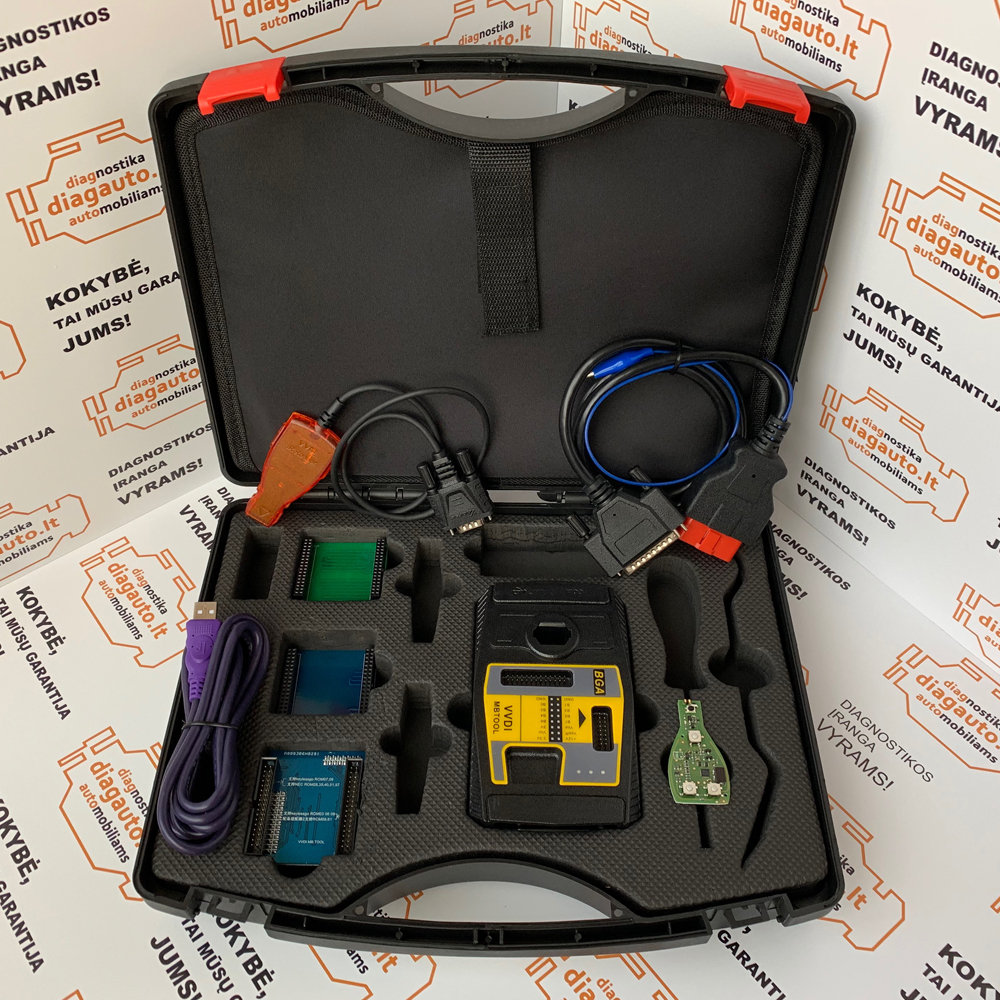

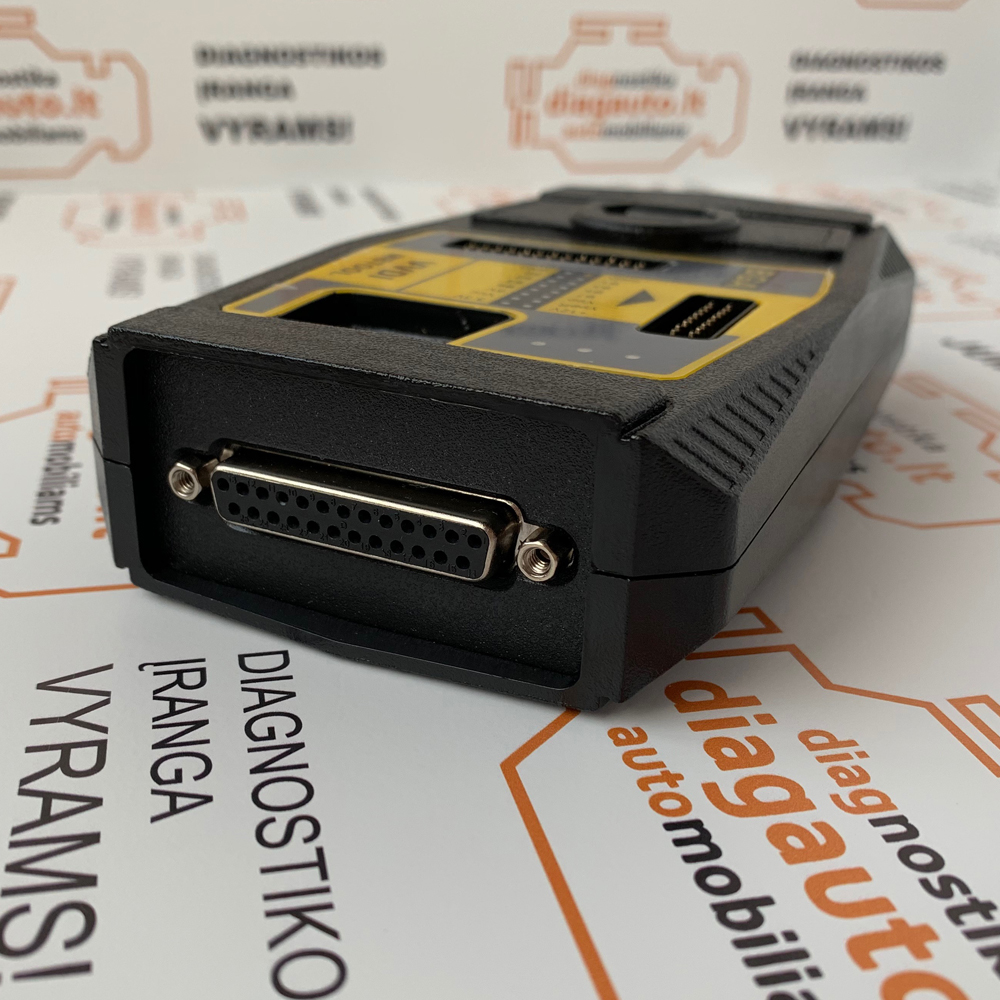

Xhorse VVDI MB BGA TOOL Brief Introduction:

1. Support BE key, read password and prepare new key via IR.
2. NEC V051,V057 support on board get password
3. All NEC keys support on board write and erase
4. Password calculate: support BGA keys, NEC keys (include 51,57version)
5. Support renew EIS and ELV
6. Support write EIS and ELV
7. Support online generate key file
8. Unlock ELV Function

VVDI MB BGA Tool Function in Details:

1. Read Write Key

1. Read key basic information
2. Key with BE version, we can read password from key via IR directly. Of course, renew key, write new key file via IR is also supported
3. Support IR repair key, repair key not work via IR
4. NEC adaptor can read key password from NEC v51, v57 version
5. Support write and renew (NEC adaptor) NEC key versions following: v51, v57,v28, v35, v40,v03, v06, v08 (Keyless Go),v05, v07, v09 (Keyless Go),v59, v61 (Keyless Go)

2. EIS Tools

1. Support read EIS data via OBD and IR adapter
2. Under OBD mode, we provide auto detect EIS type for CAN protocol
3. Support read W164, W209, W211 EIS via OBD without gateway support
4. Support read old Motorola EIS (HC05, HC08, K-Line) password via IR directly
5. Support renew EIS, make 2 nd hand EIS to new one (online)
6. Support replace EIS, you can write original EIS data to new EIS via IR
7. Support write new VIN
8. Support clear TP
9. Support disable key position
10. Support personalize W204 ESL
11. Support test EIS, ELV, working key status
12. Support type:
W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212 (old, with ELV) W203, 463, 639 (K),W202, 208, 210 (K),W215, 220 (K),W230 (K),W216,W221,W639 2009-

3. Password Calculation: support working key and lost all key

1. Password calculation can get the key password from working key and EIS (online)
2. CAN protocol EIS all support password calculation (support BGA keys and other NEC keys)
3. We also support calculate password for NEC v51, v57 keys. No soldering.
4. Data acquisition time depends on the key version. It needs about 3.5 minutes -13minutes, BGA version need about 5 minutes
5. Calculate time in server: 30 seconds – 1 minute
6. Now VVDI-MB TOOL is the fastest tool for password calculation
7. Lost all key password calculation: Now we support calculate password for W166, W212, W246, W212(old, with ELV) while lost all key
8. Support type (have working key): W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old, with ELV),W216,W221,W639 2009-

4. Prepare Key File

1. Prepare key file means prepare the key file which you will write to new key(online)
2. Prepare key file need about 20 seconds
3. Support VVDI-MB type EIS data and old Motorola EEPROM dump

5. ESL Tools

1. Support read ESL data via OBD (K-Line)
2. Support renew ESL, make 2 nd hand ESL to new one (online)
3. Support replace ESL, you can write original ESL or EIS data to new ESL
4. Support write new VIN
5. Support clear TP
6. Support auto personalized ESL, no need renew EIS
7. Support check ESL damage status
8. Support repair W204 ESL NEC chip(fatal error: 0xAA) and Motorola ESL chip
9. Support renew VVDI-MB W204 emulator

6. Renew ECU/Gearbox

1. This function support renew, write VIN, personalization operation for module ECU,Gearbox, ISM etc

Support Key Types Display:

VVDI MB BGA tool update goes well, the following workable models are for reference only.

Model Support IR/OBD:

W164, W164 2009+
A166, W197,W212, W218, A246
A169, W209, W211
W172, W204, A207
W203
W204, W207, W212 only by dump
W209 only by dump
W210
W215, W220
W230
W216
W221
W906

Keys Version Supported:

v03, v06, v08
v05, v07, v09
v59,v61
