Description
Warranty: 12 months

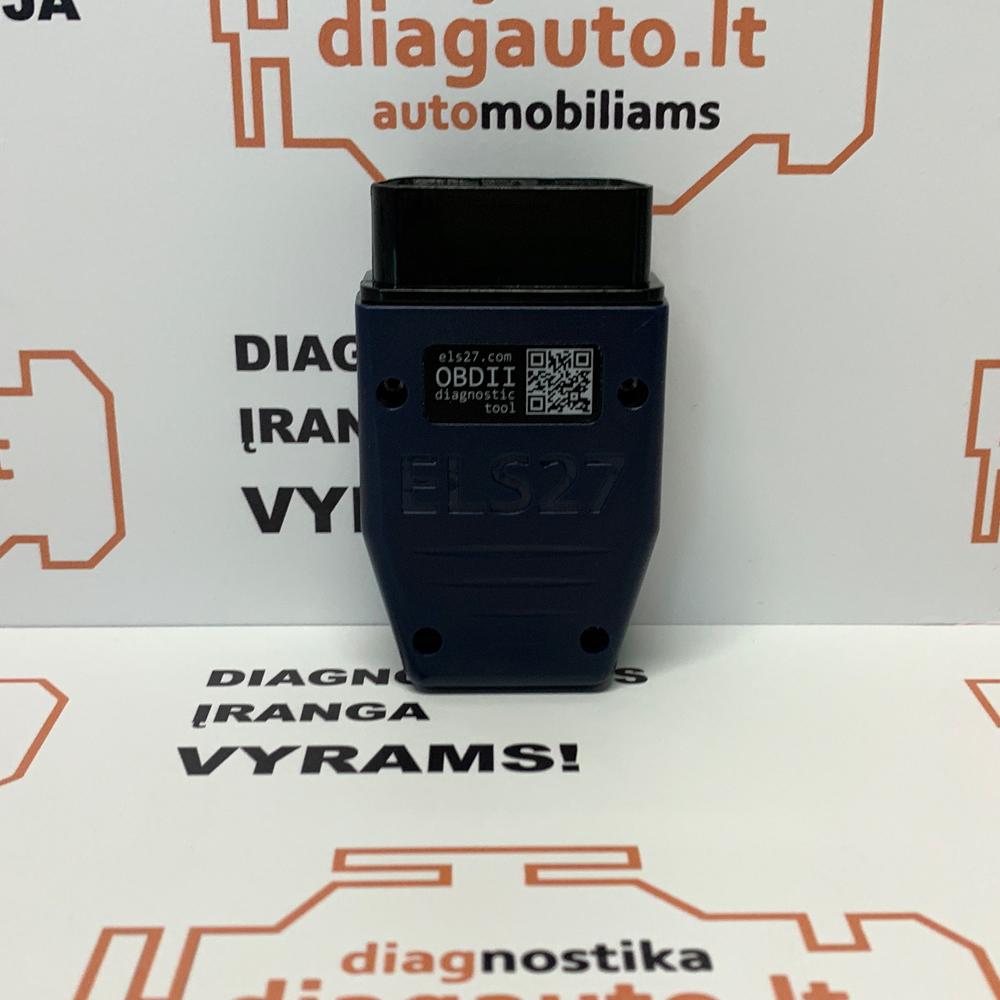

The ELS27 v4.0 diagnostic adapter is designed on the basis of the STN2120 chip, which allows you to realize all the functions of the ELM327 adapter, but:
- It supports two data buses — HS CAN and MS CAN — without switches and toggle switches;
- It works several times faster (up to 10 times, according to the chip developer);
- It supports SW CAN bus (used in General Motors cars);
- It supports MM CAN bus (used in Focus 3 and Mondeo 4);
- It supports firmware update so that any identified issues can be resolved by the developer;
- It supports sending multi-line messages;
- It has a working Reset NVM (settings reset), so it is almost impossible to disable the adapter programmatically.
Main features:
- The assembly is mainly based on Prolific PL-2303HXD (as well as rev2.0);
- FTDI FT232RQ support (as well as rev2.0);
- The adapter is always powered via OBD, but can also be powered via USB when the vehicle network is not available;
- It has all the useful features of previous revisions;
- There is a built-in K-line module on L9637D with ALDL support (5V K-line);
- Prolific version works at 1M, 2M, 4M and 8M speeds and of course with lower speeds.
Attention: This is an original adapter from the developers, manufactured in Russia and tested for compliance with all standards.
