Description
Manufacturer: TOPDON
Warranty: 24 months
Features
Adjustable Lenses: Clear Vision from Near to Far
The TS001 boasts adjustable 9mm lenses, accommodating infrared imaging needs from 0.32 to 1640 feet (0.1~500m) to ensure clarity whether viewing objects up close or at a distance.
Where Clarity Takes Center Stage
See the infrared world in stunning clarity with our 256×192 IR Resolution TS001 imager, capturing crisp images with every detail. Enjoy fluid visuals with a 25Hz infrared refresh rate for smooth and seamless viewing.

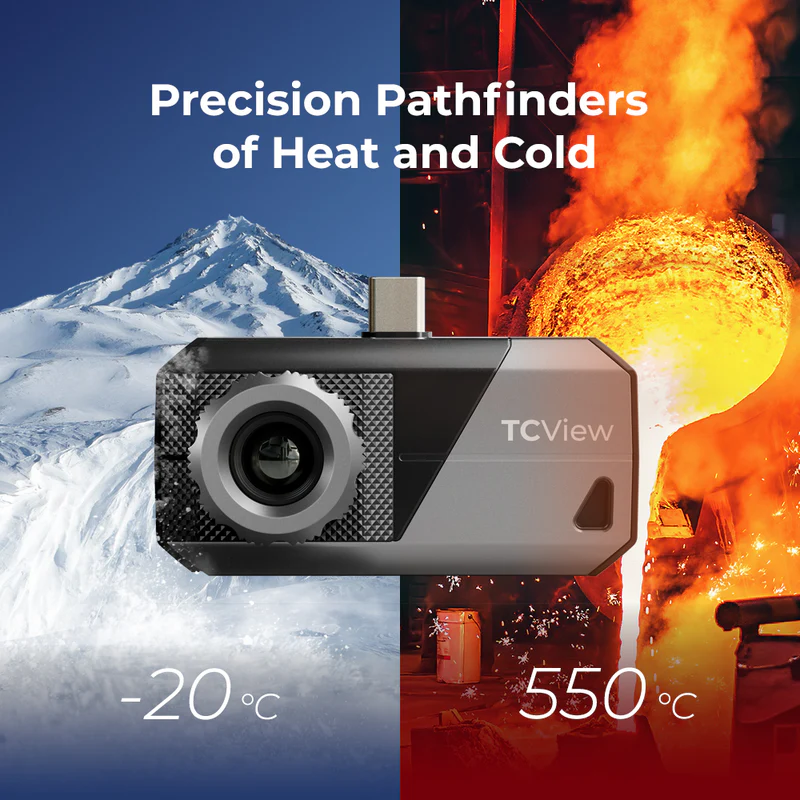

Precision Pathfinders of Heat and Cold
The TS001 achieves readings with an incredible accuracy of 0.1 degrees and an error margin of less than 3%. It’s the epitome of reliability. From frosty lows of -20°C to scorching highs of 550°C (-4°F to 1022°F), it covers the temperature spectrum effortlessly.
Fast Vision, Faster Action
In the world of thermal imaging, TS001’s observation mode is your adept ally, swiftly
capturing targets. Through these modes, TS001 rapidly identifies points of interest and uncovers anomalies within the observed area. Its dynamic recognition tracks moving objects while the high/low-temperature mode intelligently flags extreme temperature sources.
Swipe to Highlight Temperature Variance
With just a swipe, you can tailor your thermal view to focus only on what matters most to you. The intuitive color bar lets you easily set the temperature range you want to spotlight. Plus, when things heat up beyond your chosen range, you’ll see it pop in bold black and white, or any other colors you choose, making temperature differences immediately crystal clear.
Boundless Vision, Always Clear
From up close to far away, indoors to outdoors, the TS001 Thermal Imaging Camera delivers unmatched clarity. Whether you’re inspecting PCB boards in the lab, monitoring boilers from a distance, conducting HVAC checks indoors, or outdoor cable inspection, TS001 has got you covered.
Unique Image Enhancement Technology
Includes 10 different color palettes, sharpness and contrast adjustment, picture-in-picture and many other functions. Image enhancement technology makes the field of view clearer and more detailed, and enhances the target recognition function.

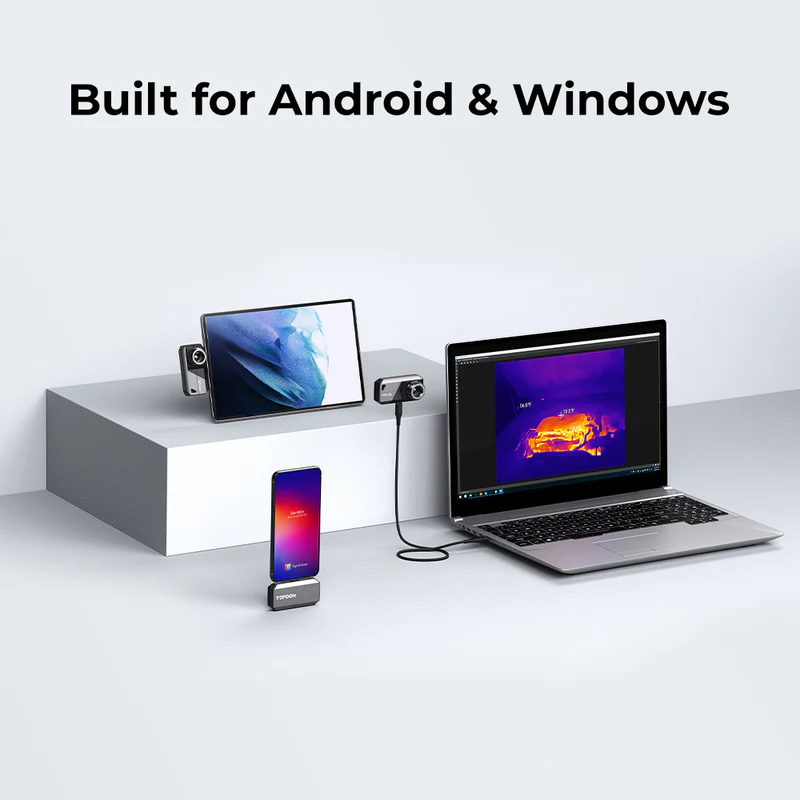

More Scenarios For Application
Compatible with Android phones and tablets, and Windows laptops. Included 50cm extension cable offers more flexibility in temperature reading.
Specifications
Resolution: 256 x 192 Pixels
NETD: <40mK
Focal Length: 9mm
Frame Rate: 25Hz
Operating Systems: Compatible with Android phones, Android tablets, & Windows laptops.
Object Temperature Range: -20°C~550°C (-4°F~1022°F)
Temperature Accuracy: ±3ºC or ±3%
Temperature Resolution: 0.1ºC
Weight: 45g
Dimension: 2.76” x 1.1” x 1.73” (70 x 28 x 44mm)
Extension Cable Length: 50cm
